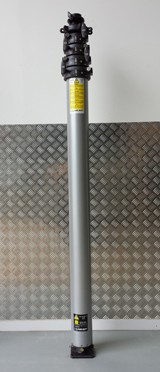

W Type Mast
WS masts have greater strength and can reach greater heights by virtue of their 6" diameter base tube. With a maximum of 30 metres, most WS series masts in mobile roles have to be transported in the horizontal position. Various roof trolley systems are available.
Standard finish:
Base section: Clear anodised
Mast sections: Clear anodised
Mast collars: Black anodised
| WS series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 4 tube section masts - W-type 6.0" | ||||
| WS119-4C | 11.85 | 3.80 | 80 | |
| WS85-4C | 8.45 | 2.80 | 95 | |
| WS68-4C | 6.75 | 2.30 | 95 | |
| WS51-4C | 5.05 | 1.80 | 100 | |
| WS42-4C | 4.20 | 1.55 | 100 | |
| 5 tube section masts - W-type 6.0" | ||||
| WS145-5C | 14.53 | 3.86 | 70 | |
| WS103-5C | 10.33 | 2.86 | 75 | |
| WS82-5C | 8.23 | 2.36 | 75 | |
| WS61-5C | 6.13 | 1.86 | 80 | |
| WS51-5C | 5.08 | 1.61 | 80 | |
| 6 tube section masts - W-type 6.0" | ||||
| WS172-6C | 17.18 | 3.92 | 50 | |
| WS122-6C | 12.18 | 2.92 | 55 | |
| WS97-6C | 9.68 | 2.42 | 55 | |
| WS72-6C | 7.18 | 1.92 | 60 | |
| WS59-6C | 5.93 | 1.67 | 60 | |
| 7 tube section masts - W-type 6.0" | ||||
| WS198-7C | 19.80 | 3.97 | 35 | |
| WS140-7C | 14.00 | 2.97 | 40 | |
| WS111-7C | 11.10 | 2.47 | 40 | |
| WS82-7C | 8.20 | 1.97 | 45 | |
| WS68-7C | 6.75 | 1.72 | 45 | |
| 8 tube section masts - W-type 6.0" | ||||
| WS224-8C | 22.39 | 4.03 | 20 | |
| WS158-8C | 15.79 | 3.03 | 25 | |
| WS125-8C | 12.49 | 2.53 | 25 | |
| WS92-8C | 9.19 | 2.03 | 30 | |
| WS75-8C | 7.54 | 1.78 | 30 | |
| 9 tube section masts - W-type 6.0" | ||||
| WS250-9C | 24.96 | 4.09 | 12 | |
| WS176-9C | 17.55 | 3.09 | 15 | |
| WS139-9C | 13.85 | 2.59 | 15 | |
| WS102-9C | 10.15 | 2.09 | 20 | |
| WS83-9C | 8.30 | 1.84 | 20 | |
