XT Masts
THE MOST POWERFUL MAST IN THE RANGE

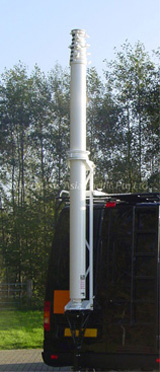

The advantage of the XT series masts is their stability unguyed. They have the power to lift up to 130kg. Built into or on the vehicle in vertical position. They have the rigidity which has become essential for much of today's communication equipment.
| XT series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 4 tube section masts | ||||
| XT40-4-TC | 4.08 | 1.69 | 130.0 | |
| XT60-4-TC | 6.08 | 2.34 | 130.0 | |
| XT80-4-TC | 8.08 | 2.92 | 130.0 | |
| XT100-4-TC | 10.06 | 3.62 | 130.0 | |
| 5 tube section masts | ||||
| XT50-5-TC | 5.08 | 1.69 | 130.0 | |
| 6 tube section masts | ||||
| XT100-6-TC | 10.06 | 2.46 | 130.0 | |
| XT120-6-TC | 12.06 | 2.86 | 130.0 | |
| XT150-6-TC | 15.06 | 3.76 | 130.0 | |
| XT180-4-TC | 18.06 | 4.06 | 130.0 | |
| 7 tube section masts | ||||
| XT300-7-TC | 30.08 | 5.50 | 50.0 | |
| 8 tube section masts | ||||
| XT6-8-TC | 6.08 | 1.64 | 130.0 | |
| XT8-8-TC | 8.08 | 1.92 | 120.0 | |
| XT10-8-TC | 10.08 | 2.20 | 110.0 | |
| XT12-8-TC | 12.08 | 2.52 | 100.0 | |
| XT15-8-TC | 15.08 | 3.02 | 80.0 | |
| XT18-8-TC | 18.08 | 3.61 | 60.0 | |
| XT26-8-TC | 26.08 | 5.09 | 55.0 | |
| 9 tube section masts | ||||
| XT90-9-TC | 9.06 | 2.22 | 90.0 | |
| XT110-9-TC | 11.08 | 2.42 | 75.0 | |
| XT140-9-TC | 14.08 | 2.82 | 65.0 | |
| XT200-9-TC | 20.08 | 3.82 | 55.0 | |
| XT300-9-TC | 30.08 | 5.15 | 50.0 | |
