European Assembled Masts

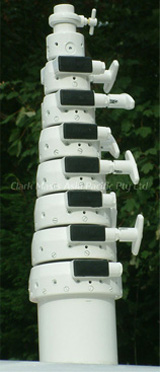

YT Mast
RIGID WHEN EXTENDED, COMPACT WHEN RETRACTED
The YT Series is a development of the PT. It features a 5" diameter base tube which makes the load and height capacity slightly more than the 4.5" diameter PT Series. Both series are available with plain guide collars for low retracted height or locking collars for long periods extended. There is a very full range of accessories for easy installation in a wide variety of vehicles.
| YT series | Heights (metres) | Headload | ||
|---|---|---|---|---|
| Model | Extended | Retracted | kg | |
| 6 tube section masts | ||||
| YT60-6-TC | 6.16 | 1.74 | 35.0 | |
| YT80-6-TC | 8.16 | 2.08 | 35.0 | |
| YT100-6-TC | 10.16 | 2.48 | 30.0 | |
| YT120-6-TC | 12.16 | 2.88 | 25.0 | |
| YT180-6-TC | 18.16 | 4.09 | 20.0 | |
| YT210-6-TC | 21.16 | 4.42 | 18.0 | |
| 7 tube section masts | ||||
| YT80-7-TC | 8.05 | 1.93 | 20.0 | |
| YT90-7-TC | 9.05 | 2.03 | 20.0 | |
| YT10.5-7-TC | 10.57 | 2.30 | 20.0 | |
| YT120-7-TC | 12.07 | 2.68 | 15.0 | |
| YT150-7-TC | 15.05 | 3.18 | 15.0 | |
| YT180-7-TC | 18.05 | 3.50 | 15.0 | |
| YT21-7-TC | 21.05 | 3.98 | 15.0 | |
| 8 tube section masts | ||||
| YT9-8-TC | 8.58 | 1.87 | 15.0 | |
| YT12-8-TC | 12.08 | 2.36 | 12.0 | |
| YT15-8-TC | 15.08 | 2.78 | 10.0 | |
